Spesifikasi

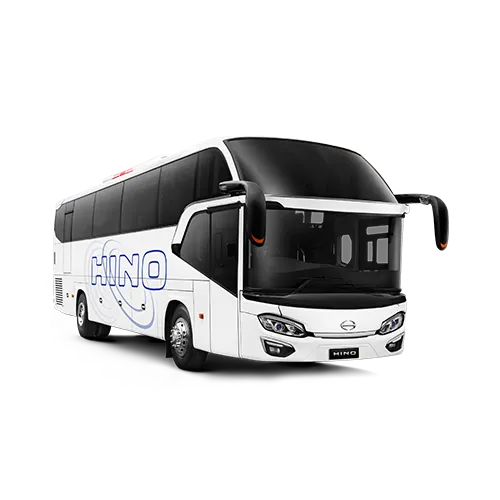

RK280 Euro 4
| Jarak Sumbu Roda | WB (mm) | 6.000 |
| Total Panjang | OL (mm) | 11.700 |
| Total Lebar | OW (mm) | 2.455 |
| Total Tinggi | OH (mm) | 2.080 |
| Lebar Jejak Depan | FR Tr (mm) | 2.040 |
| Lebar Jejak Belakang | RR Tr (mm) | 1.845 |
| Julur Depan | FOH (mm) | 2.350 |
| Julur Belakang | ROH (mm) | 3.350 |
| Model | – | J08E-WD |
| Model Tipe | – | Mesin Diesel 4 Langkah Segaris ; Variable Geometric Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum | ISO-NET PS/rpm | 280/2.500 |
| Daya Maksimum | ISO-NET Kgm/rpm | 84/1.500 |
| Tenaga Maksimum | JIS-GROSS PS/rpm | 285/2.500 |
| Daya maksimum | ISO-NET Kgm/rpm | 85/1.500 |
| Jumlah silinder | – | 6 |
| Diameter x Langkah Piston | mm | 112 x 130 |
| Isi Silinder | cc | 7.684 |
| Kecepatan Maksimum | km/h | 120 |
| Daya Tanjak | tan% | 40,3 |
| Tipe | – | MX06 |
| Ke-1 | – | 7,305 |
| Ke-2 | – | 4,736 |
| Ke-3 | – | 2,738 |
| Ke-4 | – | 1,651 |
| Ke-5 | – | 1,000 |
| Ke-6 | – | 0,787 |
| Mundur | – | 7,839 |
| Depan | – | Reversed Elliot, ‘I” section beam |
| Belakang | – | Full Floating Type Hypoid Gear |
| Perbandingan Gigi Akhir | – | 4,875 |
| Accu | V-Ah | 12V-120Ah x2 |
| Ukuran Rim | – | 22.5X8.25-165 |
| Ukuran Ban | – | 11R22.5 148/145 |
| Jumlah Ban | – | 6 + 1(Cadangan) |
| Depan & Belakang | – | Semi Eliptic Leaf Spring with Shock Absorber&Stabilizer |
| Berat Kosong | kg | 5.250 |
| Berat Total Kendaraan | kg | 15.500 |
| Tipe | – | Integral Power Steering |
| Minimal Radius Putar | m | 9,3 |
