Spesifikasi

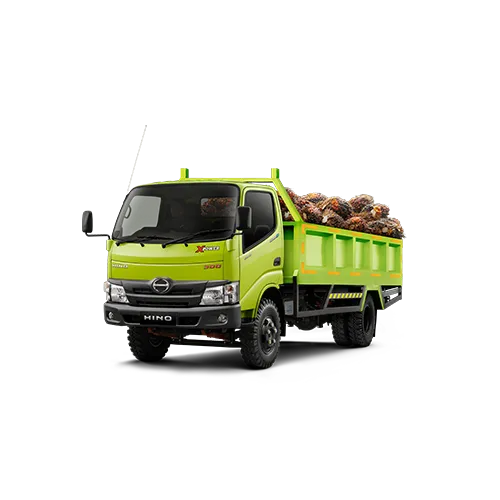

136HD Plantation Euro 4
| Jarak Sumbu Roda | WB (mm) | 3.380 |
| Total Panjang | OL (mm) | 6.026 |
| Total Lebar | OW (mm) | 1.945 |
| Total Tinggi | OH (mm) | 2.154 |
| Lebar Jejak Depan | FR Tr (mm) | 1.455 |
| Lebar Jejak Belakang | RR Tr (mm) | 1.480 |
| Julur Depan | FOH (mm) | 1.066 |
| Julur Belakang | ROH (mm) | 1.580 |
| Kabin Kesumbu Roda Belakang | CA (mm) | 2,900 |
| Model | – | N04C-WY |
| Model Tipe | – | Mesin Diesel 4 Langkah Segaris; Variable Nozzle Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum | (PS/rpm) | 136 / 2.500 |
| Daya maksimum | (Kgm/rpm) | 40 / 1.400-2.500 |
| Jumlah silinder | – | 4 |
| Diameter x Langkah Piston | (mm) | 104 x 118 |
| Isi Silinder | (cc) | 4,009 |
| Daya Tanjak | (tan %) | 47,5 |
| Kecepatan Maksimum | (Km/h) | 109 |
| Tipe | – | RE61 |
| Ke-1 | – | 6.370 |
| Ke-2 | – | 3.870 |
| Ke-3 | – | 1.913 |
| Ke-4 | – | 1.461 |
| Ke-5 | – | 1.000 |
| Ke-6 | – | 0,703 |
| Mundur | – | 5.926 |
| Depan | – | Reverse Elliot,I-Section Beam |
| Belakang | – | Full-floating; Single Reduction; Single speed by Hypoid Gearings |
| Perbandingan Gigi Akhir | – | 5,857 |
| Accu | (V-Ah) | 12V-100Ah x 1 |
| Ukuran Ban | – | 7.50-16-14PR (LUG) |
| Ukuran Rim | – | 16 x 6.00GS-127 |
| Jumlah Ban | – | 6 (+1) |
| Depan & Belakang | – | Rigid Axle dengan Pegas Daun Semi Elliptic |
| Tipe | – | Power Steering (Recirculating Ball Screw) |
| Minimal Radius Putar | (m) | 6,9 |
| Tipe | – | Power Steering (Recirculating Ball Screw) |
| Minimal Radius Putar | – | 8,0 |
