Spesifikasi

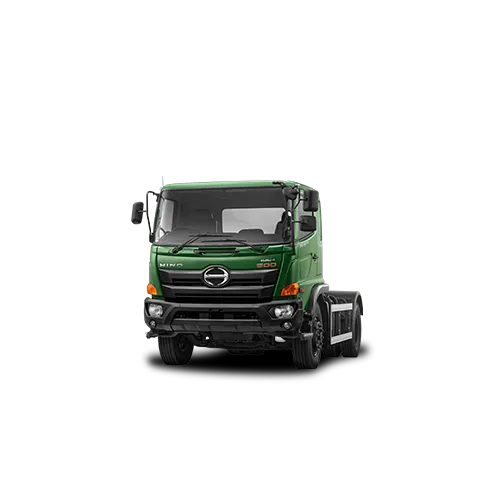

FG260TH Euro 4
| Jarak Sumbu Roda | WB (mm) | 3.580 |
| Total Panjang | OL (mm) | 5.785 |
| Total Lebar | OW (mm) | 2.490 |
| Total Tinggi | OH (mm) | 2.750 |
| Lebar Jejak Depan | FR Tr (mm) | 2.050 |
| Lebar Jejak Belakang | RR Tr (mm) | 1.835 |
| Julur Depan | FOH (mm) | 1.280 |
| Julur Belakang | ROH (mm) | 925 |
| Kabin Kesumbu Roda Belakang | CA (mm) | 2.750 |
| Model | – | J08E-WE |
| Model Tipe | – | Mesin Diesel 4 Langkah Segaris; Variable Nozzle Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum | JIS Gross (PS/rpm) | 265/2.500 |
| Daya maksimum | JIS Gross (Kgm/rpm) | 82/1.500 |
| Tenaga Maksimum | ISO-NET (PS/rpm) | 260/2.500 |
| Daya maksimum | ISO-NET (Kgm/rpm) | 81/1.500 |
| Jumlah silinder | – | 6 |
| Diameter x Langkah Piston | (mm) | 122 x 130 |
| Isi Silinder | (cc) | 7.684 |
| Kecepatan Maksimum | (Km/h) | 109 |
| Daya Tanjak | (tan %) | 48 |
| Tipe | – | MX07 |
| Ke-1 | – | 7,305 |
| Ke-2 | – | 4,736 |
| Ke-3 | – | 2,738 |
| Ke-4 | – | 1,651 |
| Ke-5 | – | 1,000 |
| Ke-6 | – | 0,787 |
| Ke-7 | – | 0,649 |
| Mundur | – | 7,839 |
| Depan | – | Reverse Elliot, I-Section Beam |
| Belakang | – | Full Floating Tipe Hypoid Gear |
| Perbandingan Gigi Akhir | – | 6,428 |
| Accu | (V-Ah) | 12V-65AH×2 |
| Ukuran Rim | – | 20X7.50V-165 |
| Ukuran Ban | – | 10.00-R20-16PR |
| Jumlah Ban | – | 6 + 1(Cadangan) |
| Depan & Belakang | – | Rigid Axle dengan Pegas Daun Semi Elliptic |
| Berat Kosong | (kg) | 5,860 |
| Berat Total Kendaraan | (kg) | 34.000 |
| Tipe | – | Integral Power Steering |
| Minimal Radius Putar | (m) | 6,4 |
