Spesifikasi

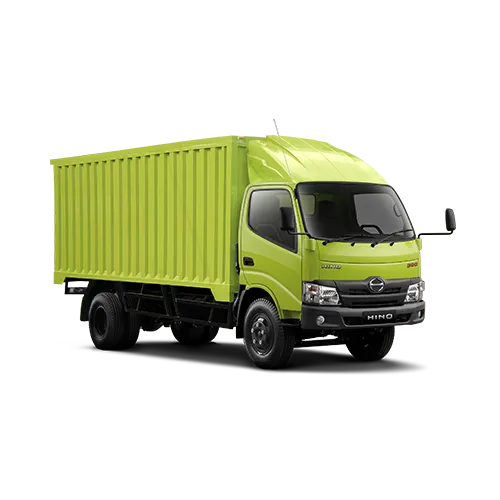

136MDL Euro 4
KAROSERI
DIMENSI
| Jarak Sumbu Roda |
WB (mm) |
4.000 |
| Total Panjang |
OL (mm) |
7.184 |
| Total Lebar |
OW (mm) |
1.955 |
| Total Tinggi |
OH (mm) |
2.153 |
| Lebar Jejak Depan |
FR Tr (mm) |
1.455 |
| Lebar Jejak Belakang |
RR Tr (mm) |
1.480 |
| Julur Depan |
FOH (mm) |
1.070 |
| Julur Belakang |
ROH (mm) |
2.114 |
| Kabin Kesumbu Roda Belakang |
CA (mm) |
3.520 |
MESIN
| Model |
– |
N04C-WY |
| Model Tipe |
– |
Mesin Diesel 4 Langkah Segaris; Variable Nozzle Turbocharger; Intercooler; Common Rail |
| Tenaga Maksimum |
(PS/rpm) |
136 / 2.500 |
| Daya maksimum |
(Kgm/rpm) |
40 / 1.400-2.500 |
| Jumlah silinder |
– |
4 |
| Diameter x Langkah Piston |
(mm) |
104 x 118 |
| Isi Silinder |
(cc) |
4,009 |
PERFORMA
| Kecepatan Maximum |
(Km/h) |
N04C-WY |
| Daya Tanjak |
(tan %) |
36,7 |
TRANSMISI
| Tipe |
– |
RE50 |
| Ke-1 |
– |
5.342 |
| Ke-2 |
– |
2.975 |
| Ke-3 |
– |
1.604 |
| Ke-4 |
– |
1.000 |
| Ke-5 |
– |
0,712 |
| Mundur |
– |
4.970 |
PERBANDINGAN GIGI AKHIR
| Depan |
– |
Reverse Elliot,I-Section Beam |
| Belakang |
– |
Full-floating; Single Reduction; Single speed by Hypoid Gearings |
| Perbandingan Gigi Akhir |
– |
5,125 |
ACCU
| Accu |
(V-Ah) |
12V-100Ah x 1 |
RODA BAN
| Ukuran Ban |
– |
7.50-16-14PR |
| Ukuran Rim |
– |
16 x 6.00GS-127 |
| Jumlah Ban |
– |
6 (+1) |
SUSPENSI
| Depan & Belakang |
– |
Rigid Axle dengan Pegas Daun Semi Elliptic |
BERAT CHASSIS
| Berat Total Kendaraan |
(kg) |
8.250 |
| Berat Kosong |
(kg) |
2,360 |
KEMUDI
| Tipe |
– |
Power Steering (Recirculating Ball Screw) |
| Minimal Radius Putar |
– |
8,0 |
